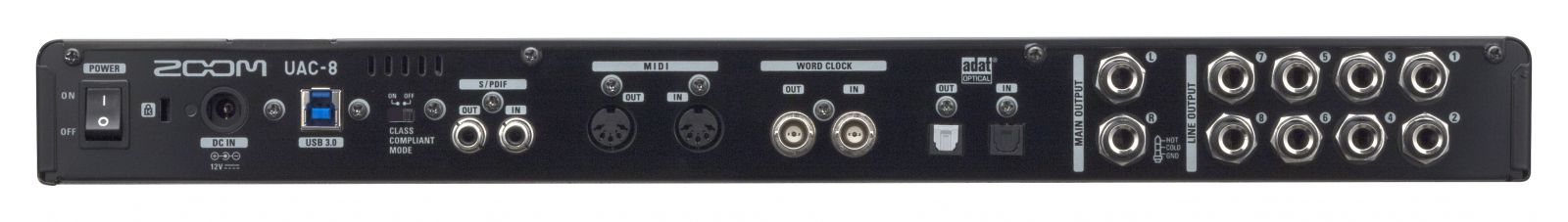

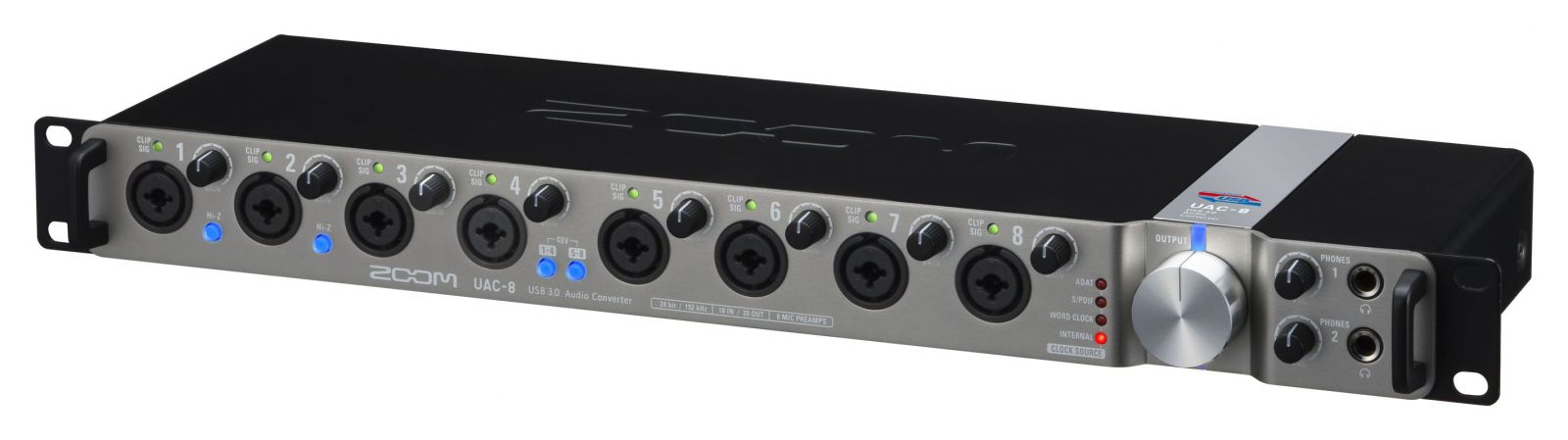

Soundcard thu âm ZOOM UAC-8, 8 input, kết nối USB 3.0
18‐in/20‐out SuperSpeed USB 3.0 audio interface
Standalone mode allows use as an 8-channel mic preamp and A/D or D/A converter without connection to a computer
Support for recording and playback of up to 24‐bit/192 kHz high‐resolution audio
ANALOG INPUTS: INPUTS 1–8
CONNECTORS: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
INPUT GAIN: 0–60 dB (1 dB steps)
INPUT IMPEDANCE: 5 kΩ 1 MΩ (When IN1/IN2 Hi-Z on)
MAXIMUM INPUT LEVEL: +13 dBu (XLR at 0 dBFS) +21 dBu (TRS at 0 dBFS)
PHANTOM POWER: +48 V
FREQUENCY CHARACTERISTICS :44.1 kHz: −1.0 dB, 20 Hz–20 kHz 96 kHz: −1.0 dB, 20 Hz–40 kHz 192 kHz: −1.0 dB, 20 Hz–60 kHz
INPUT CONVERSION NOISE: Measured EIN: -125 dB (IHF-A) at 60dB, 150Ω input
DYNAMIC RANGE: AD: 120 dB typical (IHF-A) DA: 120 dB typical (IHF-A)
SAMPLING FREQUENCIES: 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
BIT DEPTH: 24-bit
INTERFACE: USB 3.0 / 2.0
MIDI IN/OUT: 5-pin DIN jacks
POWER SUPPLY: AD-19 DC12V 2A AC adapter
EXTERNAL DIMENSIONS: 6.2 in. (D) × 19 in. (W) × 1.8 in. (H) 157.65 mm (D) × 482.6 mm (W) × 46.03 mm (H)
WEIGHT (MAIN UNIT ONLY): 4.4 pounds / 2.02 kg
HERE'S WHAT COMES INCLUDED WITH THE UAC-8:
Operation manual
USB 3.0 cable (1m)
Cubase LE download
Cubase LE startup guide
Currently shipping with:
Cubase LE8 for Mac OS X 10.9/10.10 and Windows 7/8/8.1.
