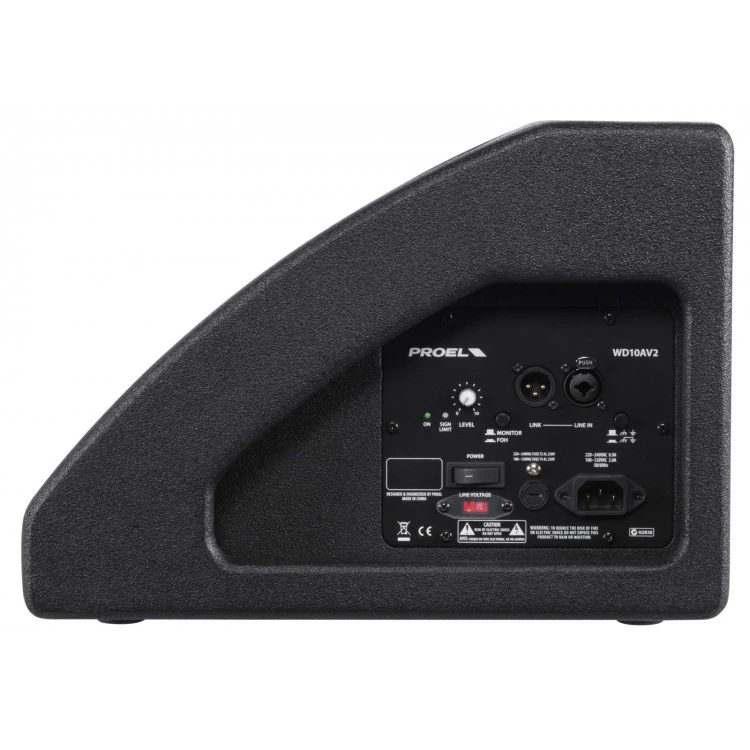

Loa monitor proel WD10AV2
System type 2-way coaxial vented
Low Frequency Device 10” woofer with 2"VC
High Frequency Device 1” neo compression driver with 1"VC
Angular Coverage 80°
Frequency Response 60 Hz - 20 kHz
Max SPL at 1mt (peak) 123 dB
Amplifier Continuous Power HF: 50 W CLASS AB
LF: 200W CLASS D with SMPS
Input Impedance 30 kohm balanced / 15 kohm unbalanced
Input sensitivity 0 dBu
Controls LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors INPUT: COMBO (XLR-F/JACK) - LINK: XLR-M
Power Supply 230 VAC or 120 VAC 50/60 Hz
Maximum Consumption 315 W
Rated Consumption* 165 W
Construction Plywood with black anti-scratch polyurethane paint
Pole adapter 1 x side
Handles 2 x sides
Monitor Taper 36°
Weight 11 kg (24,25 lb)
Dimensions (W x H x D) 480x300x420 mm
